CNC machining for civil and military helicopters
- 100% Made in Germany
- Guaranteed confidentiality & highest safety standards
- Highest precision even for particularly complex components
- Special expertise for large thin-walled parts
- Express manufacturing & automated 24/7 production
Laro NC-Technik: Manufacturer of special parts for aviation
✔ EN 9100 certification
Certified CNC service in accordance with the strict requirements of DIN EN 9100:2018 for the aerospace sector.
Certified CNC service in accordance with the strict requirements of DIN EN 9100:2018 for the aerospace sector.
✔ Feasibility analysis
Virtual machines allow the complete simulation of the machining processes before the actual manufacturing stage in order to achieve optimisation and material savings.
Virtual machines allow the complete simulation of the machining processes before the actual manufacturing stage in order to achieve optimisation and material savings.
✔ High-volume machining
Our measurement sizes enable HPC/HSC milling of large parts with lengths up to 6,000 mm and weights up to 20 tons.
Our measurement sizes enable HPC/HSC milling of large parts with lengths up to 6,000 mm and weights up to 20 tons.
✔ Air-conditioned production
Air-conditioned production halls guarantee absolute dimensional accuracy of the manufactured parts.
Air-conditioned production halls guarantee absolute dimensional accuracy of the manufactured parts.
PROTOTYPES, COMPONENTS AND SPARE PARTS FOR HELICOPTERS
Helicopters are complex aircraft used in various military and civilian missions. The construction of helicopters requires materials that are both lightweight and robust to ensure manoeuvrability and safety. Aluminium alloys play a crucial role in the production of components for helicopters: they offer an optimal balance between strength and weight.
We provide you with high-precision milled parts for helicopters in accordance with the EN 9100:2018 standard. With our special experience in lightweight construction, we are able to mill high-quality parts from aluminium, steel, titanium, Invar as well as GRP and CFRP for aviation.
As a generalist CNC service provider, we provide you with all services from a single source. Depending on your requirements, we also take on individual upstream or downstream work steps, such as surface finishing, in addition to machining. We even consistently "think along" with the process steps outside our company. Because we want to support you as effectively as possible in the realisation of your project.
Our wide-ranging expertise and modern machinery make us the ideal partner for all cases. Convince yourself of the expertise and commitment of our employees.
Make an appointment now for a non-binding consultation!
We provide you with high-precision milled parts for helicopters in accordance with the EN 9100:2018 standard. With our special experience in lightweight construction, we are able to mill high-quality parts from aluminium, steel, titanium, Invar as well as GRP and CFRP for aviation.
As a generalist CNC service provider, we provide you with all services from a single source. Depending on your requirements, we also take on individual upstream or downstream work steps, such as surface finishing, in addition to machining. We even consistently "think along" with the process steps outside our company. Because we want to support you as effectively as possible in the realisation of your project.
Our wide-ranging expertise and modern machinery make us the ideal partner for all cases. Convince yourself of the expertise and commitment of our employees.
Make an appointment now for a non-binding consultation!
Precision milled parts for helicopter manufacturers and helicopter MRO

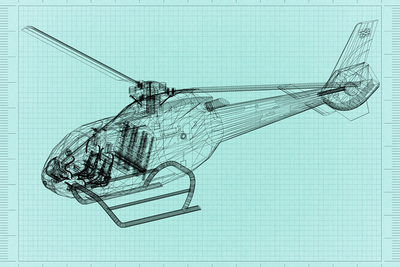

Helicopter structural components
Helicopter components for the structure and fuselage must be manufactured with precision in order to fulfil the high requirements for strength and stability. Aluminium alloys are particularly suitable as they offer an excellent balance between weight and robustness. Milling can produce the complex geometries and shapes required for a helicopter's structure and fuselage to maximise structural integrity and aerodynamic efficiency.
Helicopter engine parts
Engine components must be exceptionally precise and durable to withstand the extreme conditions within the engine. Steel and aluminium alloys are often the material of choice as they remain stable at high temperatures and support the performance of the engine. Laro NC-Technik is your contract manufacturer for the milling of all non-turned parts in the engine area.

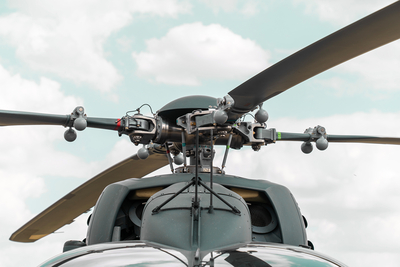

Helicopter rotor blades
The manufacture of rotor blades requires high-precision milled parts to ensure the necessary balance and performance. Aluminium alloys are often used for rotor blades because they are light and robust at the same time. Laro NC-Technik manufactures milled parts up to 6 metres in length from a single piece, as well as high-strength tools for the production of rotor blades made from CFRP carbon fibre composites. These tools must be extremely precise and durable in order to guarantee consistent quality in the production of the rotor blades.
Helicopter spare parts
Spare parts - especially if they are missing - are the Achilles' heel of any aviation organisation. Helicopter spare parts must be milled to the exact specifications of the original part to ensure seamless integration and function. Aluminium alloys are particularly suitable here, as they offer high strength and low weight. Laro NC-Technik regularly undergoes strict EN 9100 certification to ensure that your spare parts always fulfil the high standards of the aviation industry.
HELICOPTERS & ALUMINIUM
Why are gyroplanes made of aluminium?
Aluminium alloys are widely used in helicopter construction, but also in aircraft design, drone manufacturing and the aerospace industry due to their outstanding properties. They offer an ideal combination of low density and high strength, which reduces the overall weight of the aircraft and therefore increases energy efficiency and flight range. Aluminium alloys are also extremely resistant to corrosion, which extends the service life of aircraft components and reduces maintenance costs. The various aluminium alloys, examples of which are listed in the following table, enable very specific material properties. Depending on their composition, the alloys exhibit specific hardness, toughness and resistance to extreme temperatures and mechanical stresses.
| Metal | Material Designation | Properties |
|---|---|---|
Titanium Alloys | Ti-6Al-4V, Ti-6AL-4V ELI, 6AL-6V-2Sn-Ti | High strength, low weight, corrosion resistance, high cycle fatigue resistance - used in aerospace, maritime, chemical industry, biomedical |
Aluminium Alloys with Magnesium | EN AW 5754, EN AW 5083 | Medium to high strength, weldable - used in shipbuilding, transport, pressure vessels, bridges and buildings, as AA5024 (AlMgSc) also used in aviation |
Aluminium Alloys with Magnesium + Silicon | EN AW 6082, EN AW 6060, EN AW 6061 | Very good weldability and extrudability - mainly used as extruded profiles |
Aluminium Alloys with Zinc | EN AW 7010, EN AW 7019, EN AW 7020, EN AW 7040, EN AW 7050, EN AW 7074, EN AW 7075 | High to very high strength - used in aircraft construction, aerospace, sports equipment, mobile phone and watch housings |
Tool Steel | 1.1xxx, 1.2xxx, 1.3xxx | Mainly used for the production of active elements of tools, such as rollers, stamps, dies, reinforcement rings, bending swords |
Stainless Steel | 1.4xxx | Resistant to moisture, alkalis, acids, chloride, air pollutants - widely used in mechanical engineering, plant engineering, apparatus engineering, pumps, sanitary, heating, household, medicine, etc. |
Manganese Steel | 1.3401 | Also hard manganese steel or manganese hard steel - due to its high wear resistance used in applications with strong impact and shock loads |
(Ballistic) Safety Steel | HB477-540, HB530-590, HB580-640, HB630-700 | Explosion-proof, flexible, weldable, highest resistance to cyclic stress and fatigue - used for armor (armor steel) |
Duplex Steel | 1.4462 | High strength and yield strength, very corrosion and seawater resistant - used in the maritime and offshore industry, chemical industry, food industry, apparatus and container construction |
What sets us apart are our experienced and qualified employees, our modern machinery and our customer-orientated approach. This enables us to fulfil your individual requirements. You can rely on our competence and expertise in the production of aerospace components.
We find the right solution for every component. High-speed cutting (HSC milling) enables aerospace parts to be manufactured particularly quickly. From thin-walled workpieces with low weight to heavy-duty machining: we have solutions for practically every project. We manufacture highly complex components and guarantee you continuous process reliability.
We find the right solution for every component. High-speed cutting (HSC milling) enables aerospace parts to be manufactured particularly quickly. From thin-walled workpieces with low weight to heavy-duty machining: we have solutions for practically every project. We manufacture highly complex components and guarantee you continuous process reliability.
CNC machine park: plenty of working space for large-volume machining
If you would like to have large, thin-walled components milled, Laro NC-Technik GmbH is the right partner for you as a particularly broad-based supplier. With our modern and powerful CNC machines, machining large parts is no problem. Machining large parts up to 6,000 mm and 20 tonnes is part of our everyday business. You can rely on precise and safe CNC machining of large parts in our air-conditioned halls.

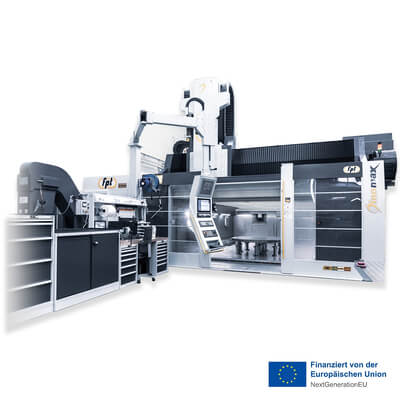

FPT DINO MAX
High Performance Cutting
High Speed Cutting
Working area X = 6000mm, Y = 3500mm, Z = 1500mm
High Performance Cutting
High Speed Cutting
Working area X = 6000mm, Y = 3500mm, Z = 1500mm
Henri-Line Vertamill 229 Zoom
Working area X = 6000mm, Y = 2850mm, Z = 2100mm
Working area X = 6000mm, Y = 2850mm, Z = 2100mm
Bavius UBZ HP 300/200 T3
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
Bavius UBZ NT 300/200
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
Bavius UBZ NT 300/200
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
FPT Dino
Working area X = 2300mm, Y = 1600mm, Z = 900mm
Working area X = 2300mm, Y = 1600mm, Z = 900mm
EN 9100:2018 certification
As a regularly EN 9100-certified machining company, we are officially qualified to manufacture parts for the aerospace industry. We demonstrably pay attention to the exact documentation of our processes and interfaces. All services and products are fully traceable.
Our EN 9100:2018 certification confirms what our customers have long known: Absolute reliability and the highest quality are our standard. Your aerospace components are in the best hands with us.
You can find more information about our EN 9100:2018 certification here.
Our EN 9100:2018 certification confirms what our customers have long known: Absolute reliability and the highest quality are our standard. Your aerospace components are in the best hands with us.
You can find more information about our EN 9100:2018 certification here.
Feasibility analysis
We use virtual machines to reliably check the feasibility of your designs without the need for materials or machinery. This allows us to identify and analyse any challenges in advance. We then work with you to find the optimum solution and support you in adapting your design if necessary. CNC components for the aerospace industry are often highly complex. Here in particular, it is worth carrying out a feasibility analysis. This ensures that time and money are invested efficiently.
MGSE
We are your partner for the production of high-quality Mechanical Ground Support Equipment components. We are at your side during all process steps. Excellently trained employees and modern machinery enable us to offer all services from a single source. Benefit from our in-depth expertise and experience right from the design and construction of your components.
You can find more information about our services for MGSE here
You can find more information about our services for MGSE here
Expertise in CNC contract manufacturing of titanium and aluminium helicopter parts
One example of the use of aluminium alloys in helicopters is the production of rotor blades and frame components. These components must be extremely strong to withstand the high mechanical loads during flight, but at the same time light enough to maximise the efficiency of the helicopter.
Another example is the use of aluminium alloys in the manufacture of engine covers, housings, engine parts and fuselage structures such as stringers, frames and clips. These components contribute significantly to the performance and reliability of the helicopter by reducing overall weight and improving structural integrity. Laro NC-Technik is your specialist for the production of brackets, inserts, structural components, support components, lightweight brackets and many other highly complex milled parts.
Another example is the use of aluminium alloys in the manufacture of engine covers, housings, engine parts and fuselage structures such as stringers, frames and clips. These components contribute significantly to the performance and reliability of the helicopter by reducing overall weight and improving structural integrity. Laro NC-Technik is your specialist for the production of brackets, inserts, structural components, support components, lightweight brackets and many other highly complex milled parts.
Range of surface coating / surface finishing services
- Glass bead blasting
- Powder coating
- Painting
- Passivation
- Anodising
- Silver plating
- Nickel plating
- Galvanising
- Chromic acid anodising
- Hard anodising
- Copper plating
- Chrome plating
- Gold plating
Thin-walled parts
We mill thin-walled parts that are frequently required in aviation with minimal tolerances for maximum precision. Our experience in this area is the guarantee for your weight-optimised and resistant components and structural parts. The lowest possible weight is of great importance in aviation, not only for technical but also for economic reasons.
Aluminium and CFRP/GRP
Our employees are your experts in the machining of aluminium and CFRP/GRP. These materials are particularly valued in aviation and aerospace because they combine lightness with high stability. Carbon aerospace parts and aerospace components are lightweight and can withstand heavy external loads. As a proven and versatile material, aluminium is also frequently used in aerospace projects.
Large-volume machining
Large-volume machining is also part of our broad area of expertise. Very large components are often required for aerospace designs in particular. We manufacture CNC components up to 6,000 mm in size and 20 tonnes in weight with maximum precision.
You can find more information about our services in large-volume machining here.
You can find more information about our services in large-volume machining here.
Milling large parts to the perfect finish
Laro NC-Technik has invested in a 5-axis milling machine from FPT with Sinumerik One control. The quantum leap in terms of efficiency, precision and surface quality for machining large parts has been achieved and the course has been set for automated workpiece feeding.
📰 Read the press article in the trade journal NC-Fertigung here!
📷 Start interactive 360° tour of the machine
Machine and equipment: The FPT Dinomax has Siemens linear motors, a traverse path of 6,000 x 3,500 x 1,500 mm and can machine large parts at up to 22,000 revolutions per minute.
Automation and precision: The machine enables fully automatic, high-precision machining of aluminium and steel. It can change tools weighing up to 35 kg and process workpieces with a surface load of up to 15 tonnes per square metre.
Control system and software: The Sinumerik One control system offers comprehensive software packages and enables seamless integration into the existing infrastructure.
Efficiency and flexibility: The machine can change the milling spindle fully automatically within three minutes, it can switch from HPC High Performance Cutting to HSC High Speed Cutting and offers high repeat accuracy in the µ range.
Automation: Laro NC-Technik is planning palletising systems to further increase the efficiency of CNC machining of large parts.
📰 Read the press article in the trade journal NC-Fertigung here!
📷 Start interactive 360° tour of the machine
Machine and equipment: The FPT Dinomax has Siemens linear motors, a traverse path of 6,000 x 3,500 x 1,500 mm and can machine large parts at up to 22,000 revolutions per minute.
Automation and precision: The machine enables fully automatic, high-precision machining of aluminium and steel. It can change tools weighing up to 35 kg and process workpieces with a surface load of up to 15 tonnes per square metre.
Control system and software: The Sinumerik One control system offers comprehensive software packages and enables seamless integration into the existing infrastructure.
Efficiency and flexibility: The machine can change the milling spindle fully automatically within three minutes, it can switch from HPC High Performance Cutting to HSC High Speed Cutting and offers high repeat accuracy in the µ range.
Automation: Laro NC-Technik is planning palletising systems to further increase the efficiency of CNC machining of large parts.
CNC PRODUCTION HELICOPTER COMPONENTS
Comprehensive customer service right from the start
In CNC production for helicopter milled parts , we are your worry-free full-service provider. Our range of services goes far beyond machining; we want to support you wherever you are. From the initial idea to the finished component, we are the right partner for every project. You will be impressed by our customer-orientated company approach: fast response times, adherence to deadlines and openness to new ideas are just a few examples of what makes us stand out as a partner in machining. Our CNC milling services are affordable and reliable.
Have we piqued your interest?
Make an appointment now for a non-binding consultation!
