HSC High Speed Cutting: large-volume machining for your project
- Large-volume machining up to 6,000 mm and 20 tonnes
- High precision in the µ range combined with short machining times

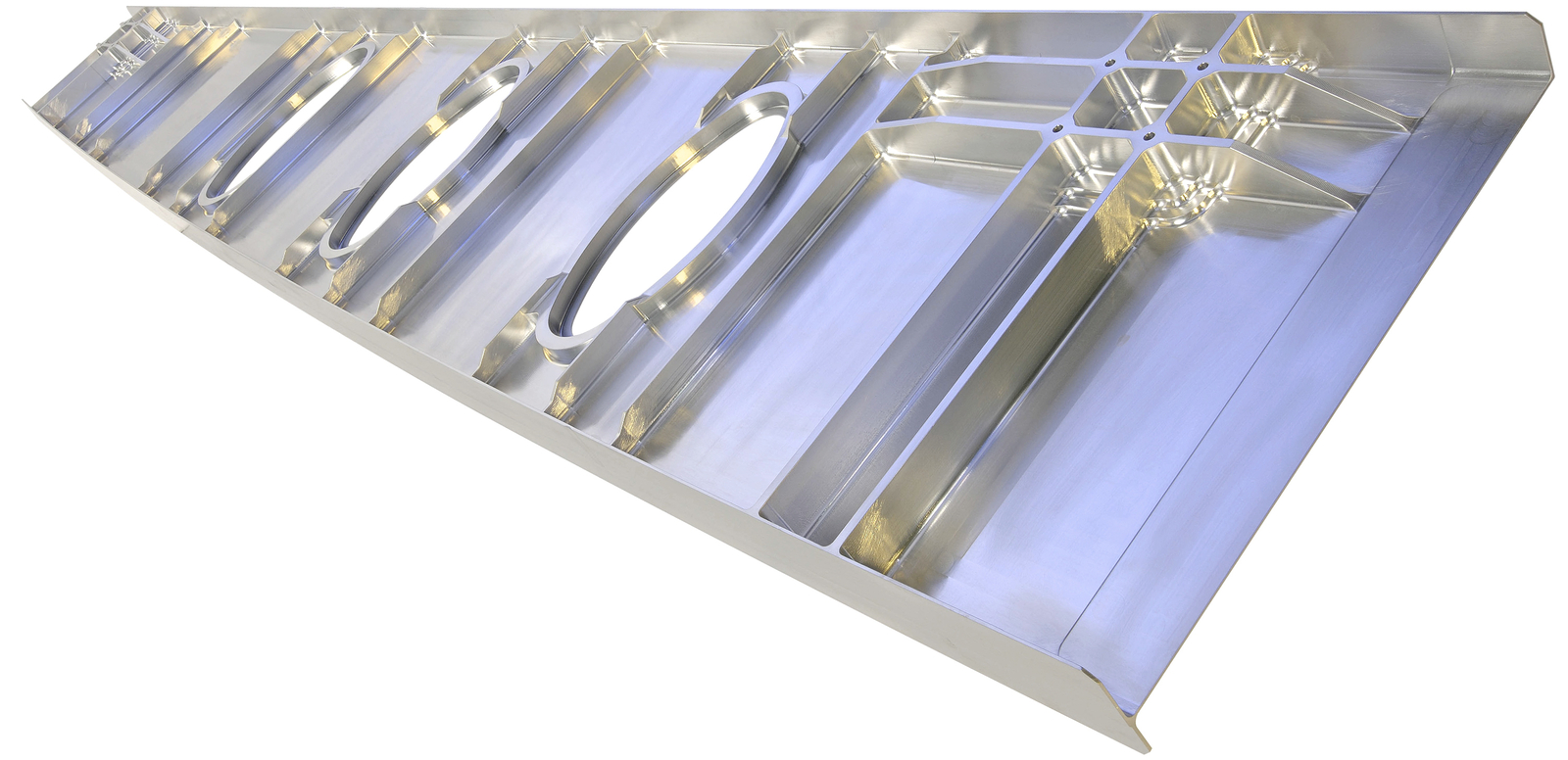

- Thin-walled large parts with outstanding surface quality
- Various materials and alloys in aluminium, steel, GRP, CFRP, plastic
- Production certified for aerospace
HPC High Performance Cutting
Feasibility study

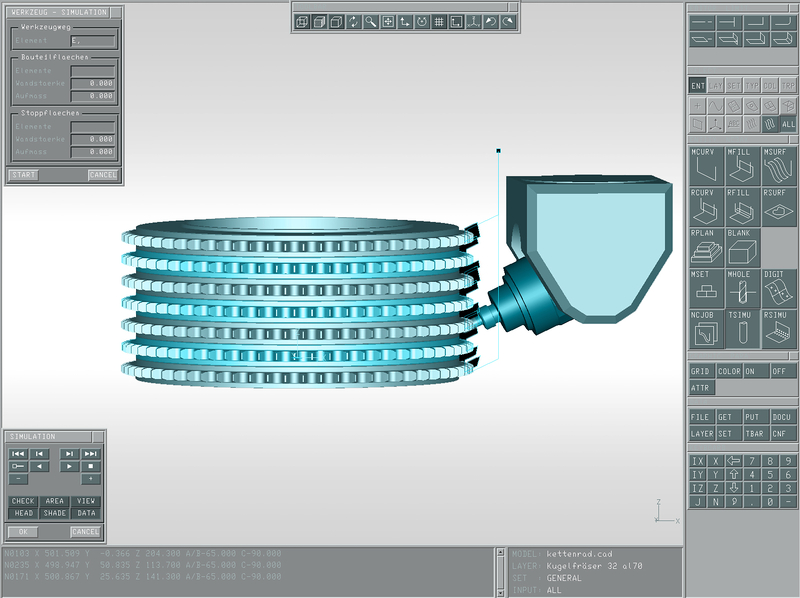

Virtual machines allow the complete simulation of the machining processes before the actual manufacturing stage in order to achieve optimisation and material savings.
Virtual machines allow the complete simulation of the machining processes before the actual manufacturing stage in order to achieve optimisation and material savings.
✔ Air-conditioned production
Air-conditioned production halls guarantee absolute dimensional accuracy of the manufactured parts.
Air-conditioned production halls guarantee absolute dimensional accuracy of the manufactured parts.
✔ EN 9100 certified
Certified CNC service in accordance with the strict requirements of DIN EN 9100:2018 for the aerospace sector.
Certified CNC service in accordance with the strict requirements of DIN EN 9100:2018 for the aerospace sector.
✔ Aerospace industry
We manufacture components for the aerospace sector as well as ultra-lightweight parts in accordance with DIN EN 9100:2018.
We manufacture components for the aerospace sector as well as ultra-lightweight parts in accordance with DIN EN 9100:2018.
Milling large parts to the perfect finish
Laro NC-Technik has invested in a 5-axis milling machine from FPT with Sinumerik One control. The quantum leap in terms of efficiency, precision and surface quality for machining large parts has been achieved and the course has been set for automated workpiece feeding.
📰 Read the press article in the trade journal NC-Fertigung here!
📷 Start interactive 360° tour of the machine
Machine and equipment: The FPT Dinomax has Siemens linear motors, a traverse path of 6,000 x 3,500 x 1,500 mm and can machine large parts at up to 22,000 revolutions per minute.
Automation and precision: The machine enables fully automatic, high-precision machining of aluminium and steel. It can change tools weighing up to 35 kg and process workpieces with a surface load of up to 15 tonnes per square metre.
Control system and software: The Sinumerik One control system offers comprehensive software packages and enables seamless integration into the existing infrastructure.
Efficiency and flexibility: The machine can change the milling spindle fully automatically within three minutes, it can switch from HPC High Performance Cutting to HSC High Speed Cutting and offers high repeat accuracy in the µ range.
Automation: Laro NC-Technik is planning palletising systems to further increase the efficiency of CNC machining of large parts.
📰 Read the press article in the trade journal NC-Fertigung here!
📷 Start interactive 360° tour of the machine
Machine and equipment: The FPT Dinomax has Siemens linear motors, a traverse path of 6,000 x 3,500 x 1,500 mm and can machine large parts at up to 22,000 revolutions per minute.
Automation and precision: The machine enables fully automatic, high-precision machining of aluminium and steel. It can change tools weighing up to 35 kg and process workpieces with a surface load of up to 15 tonnes per square metre.
Control system and software: The Sinumerik One control system offers comprehensive software packages and enables seamless integration into the existing infrastructure.
Efficiency and flexibility: The machine can change the milling spindle fully automatically within three minutes, it can switch from HPC High Performance Cutting to HSC High Speed Cutting and offers high repeat accuracy in the µ range.
Automation: Laro NC-Technik is planning palletising systems to further increase the efficiency of CNC machining of large parts.
HIGH SPEED CUTTING by Laro NC-Technik
High-speed milling with spindle change in less than 3 minutes
With high-speed cutting (HSC), we offer you an advanced machining technology that impresses with its high cutting speeds and precise results. This method is ideal for machining large workpieces, as it ensures efficient material removal and outstanding surface quality. Our FPT Dinomax CNC machining centre is specially designed for HSC and enables us to implement your projects quickly and precisely.
Are you looking for cost-effective and qualified contract manufacturing for CNC machining of large workpieces? Laro NC-Technik is the generalist in the field of high-end CNC machining of large parts. We have the expertise and the machines to mill large CNC parts. We offer CNC milling of large workpieces up to 6,000 mm long | 3,500 mm wide | 1,500 mm high and up to 20 tonnes in weight. Large-volume machining is carried out in air-conditioned workshops and in strict compliance with the EN 9100 and ISO 9001 quality certificates.
Our contract machining of large workpieces processes steel, aluminium, titanium, Invar, CFRP/GRP and various plastics. We also offer all process steps from design to the finished component. All the technologies and machines required for heavy-duty milling are available in-house on our company premises. This means that you always receive all services from a single source. We are on hand to advise you throughout the entire production process of large workpiece milling.
We use modern virtualisation methods to optimise designs and travel paths before we machine the large workpieces. In this way, we also guarantee particularly reliable production processes. Our experienced employees find the optimum solution for every project. You will notice their high level of motivation and expertise from the very first meeting.
We are always open to new ideas and determined to fulfil your requirements in every respect. High dimensional accuracy and customer-orientation make Laro NC-Technik the ideal partner for contract manufacturing High Speed Cutting throughout Europe.
Are you looking for cost-effective and qualified contract manufacturing for CNC machining of large workpieces? Laro NC-Technik is the generalist in the field of high-end CNC machining of large parts. We have the expertise and the machines to mill large CNC parts. We offer CNC milling of large workpieces up to 6,000 mm long | 3,500 mm wide | 1,500 mm high and up to 20 tonnes in weight. Large-volume machining is carried out in air-conditioned workshops and in strict compliance with the EN 9100 and ISO 9001 quality certificates.
Our contract machining of large workpieces processes steel, aluminium, titanium, Invar, CFRP/GRP and various plastics. We also offer all process steps from design to the finished component. All the technologies and machines required for heavy-duty milling are available in-house on our company premises. This means that you always receive all services from a single source. We are on hand to advise you throughout the entire production process of large workpiece milling.
We use modern virtualisation methods to optimise designs and travel paths before we machine the large workpieces. In this way, we also guarantee particularly reliable production processes. Our experienced employees find the optimum solution for every project. You will notice their high level of motivation and expertise from the very first meeting.
We are always open to new ideas and determined to fulfil your requirements in every respect. High dimensional accuracy and customer-orientation make Laro NC-Technik the ideal partner for contract manufacturing High Speed Cutting throughout Europe.
Enquire now without obligation and get advice!
HPC HIGH PERFORMANCE CUTTING
Mechanical machining of large workpieces using high-performance cutting
High Performance Cutting (HPC) is an advanced machining technology that has been specially developed for CNC milling of large parts and complex workpieces. This method combines high cutting speeds with precise Sinumerik One control to ensure efficient and high-quality machining. HPC is particularly suitable for fast roughing of materials with high strength and toughness. Our FPT Dinomax CNC machines are optimally designed for HPC and enable us to realise large workpieces with maximum precision and efficiency in contract machining. With these high-performance milling machines, we can realise even the most demanding projects with tolerances in the µ range and unprecedented speed - the machining of large workpieces with up to 90% chip volume has thus opened up new dimensions for milled parts and their cost-effectiveness.
High Speed Cutting Machine: Laro NC-Technik tools for high-performance milling
Not all milling machines are the same. The maximum size of the parts to be machined is clearly defined for each CNC machine. In the aerospace industry in particular, large components without potential weak points, such as weld seams or mechanical joints, are often required. At the same time, the certification requirements of EN 9100 are exceptionally high. Laro NC-Technik fulfils them all. Our contract manufacturing "large part milling" supplies you throughout Europe. With our modern and powerful CNC machines, we offer HPC High Performance Cutting / HSC High Speed Cutting contract manufacturing. The machining of large parts up to 6,000 mm and 20 tonnes in high-performance cutting is our everyday business. You can rely on precise and safe CNC machining of large parts in our air-conditioned halls.
FPT DINO MAX
Working area X = 6000mm, Y = 3500mm, Z = 1500mm
Working area X = 6000mm, Y = 3500mm, Z = 1500mm
Henri-Line Vertamill 229 Zoom
Working area X = 6000mm, Y = 2850mm, Z = 2100mm
Working area X = 6000mm, Y = 2850mm, Z = 2100mm
Bavius UBZ HP 300/200 T3
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
Bavius UBZ NT 300/200
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
Bavius UBZ NT 300/200
Working area X = 4500mm, Y = 2600mm, Z = 1500mm
FPT Dino
Working area X = 2300mm, Y = 1600mm, Z = 900mm
Working area X = 2300mm, Y = 1600mm, Z = 900mm
Expertise and experience in CNC milling of large parts
However, having the right equipment is not enough: heavy-duty milling requires special expertise and decades of project experience. Our qualified employees are able to machine large workpieces with the highest precision. Our special experience and expertise make us experts in the CNC milling of large parts using HGZ technology. We also ensure maximum dimensional accuracy for workpiece dimensions that are far removed from the usual standard sizes. You receive a product that exactly meets your expectations.
Maximum efficiency thanks to virtual high-performance cutting tools
CNC milling work on large parts is usually more complex than for standard sizes. Nevertheless, it is our aim to offer you the highest quality at a fair price. Especially when it comes to high-speed cutting of large parts, you as a customer benefit from our particularly reliable production processes thanks to modern visualisation methods. Even if we are not the HSC milling shop near your location, you can rely on the quality promise of Laro NC-Technik without having to be on site yourself. We guarantee that.
We use computer-generated simulations to identify challenges or potential difficulties in advance and can point out possible solutions. Without the costly use of material and machines, we analyse and optimise your designs - cost-saving and reliable.
We use computer-generated simulations to identify challenges or potential difficulties in advance and can point out possible solutions. Without the costly use of material and machines, we analyse and optimise your designs - cost-saving and reliable.
CNC MACHINING OF LARGE PARTS
What special skills characterise us for high-speed cutting milling?
Decide in favour of Laro NC-Technik GmbH for the milling of large parts: We also support you in all upstream and downstream work steps. For example, you can save considerable transport costs for large components by having assembly, measuring and finishing carried out directly by us. You receive all services from a single source. As an EN 9100:2018-certified company, the highest quality is our claim and standard.
Performance overview of the FPT Dinomax high-speed cutting machine
| CNC Milling Metals | Steel, Aluminium, Titan, Invar |
|---|---|
| CNC Milling Non-Metals | CFRP, GFRP, various plastics |
| Workpiece Length | up to 6000 mm |
| Weight | up to 20 t |
| Certification | EN 9100:2018 |
HGZ high-speed cutting in an air-conditioned workshop
We always manufacture your large components in specially designed, air-conditioned production halls. The heat generated by the machines during operation is dissipated directly. By maintaining constant temperatures, the CNC components retain their exact dimensions and properties throughout the entire machining process.
HIGH-PERFORMANCE MILLING STARTS WITH CONSULTATION
Comprehensive customer service from the idea to the finish
In large-volume machining, we are your worry-free full-service provider for CNC machining of large parts. High-speed cutting (HSC) offers numerous advantages that are particularly beneficial for specialised milling companies such as LARO NC-Technik. By using High Performance Cutting (HPC), cutting parameters such as cutting speed and feed rate can be significantly increased, resulting in maximum optimisation of the metal removal rate. Our range of services goes far beyond roughing (HPC) and finishing (PSC) material blocks! Rather, we want to support you wherever you are in your project. From the idea to the finished component, we are the right partner for every project in the mechanical processing of large workpieces.
Take advantage of these benefits for your milled part:
Take advantage of these benefits for your milled part:
- Increased productivity: the higher cutting speeds mean that workpieces can be machined faster, which significantly reduces production times.
- Better surface quality: The high precision and fine cuts lead to an improved surface quality of the machined parts.
- Less tool wear: Despite the high speeds, tool wear remains low, which extends the service life of the tools and reduces costs.
- Versatile material processing: HGZ is suitable for a wide range of materials, including aluminium, steel and plastic, which increases flexibility in production.
For LARO NC-Technik, the use of high-speed cutting means a significant increase in efficiency and quality in the production of large parts. Our customers benefit from faster production times, lower costs and an outstanding surface quality of the machined parts. Rely on LARO NC-Technik and experience the benefits of high-speed cutting for your milled parts!
Have we piqued your interest?
Make an appointment now for a non-binding consultation!
